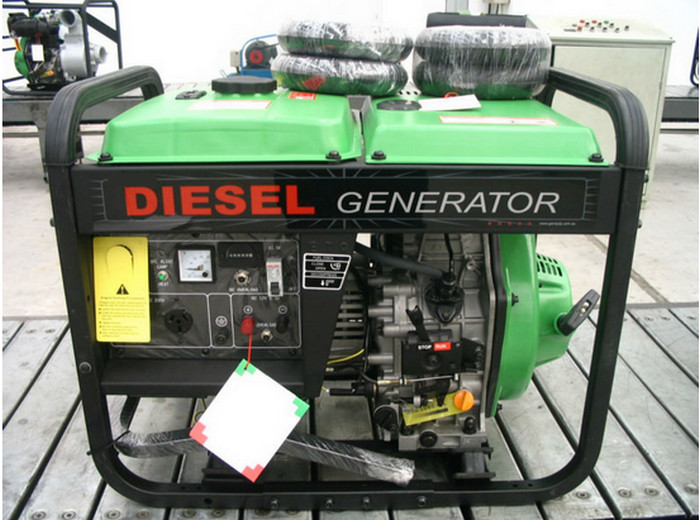

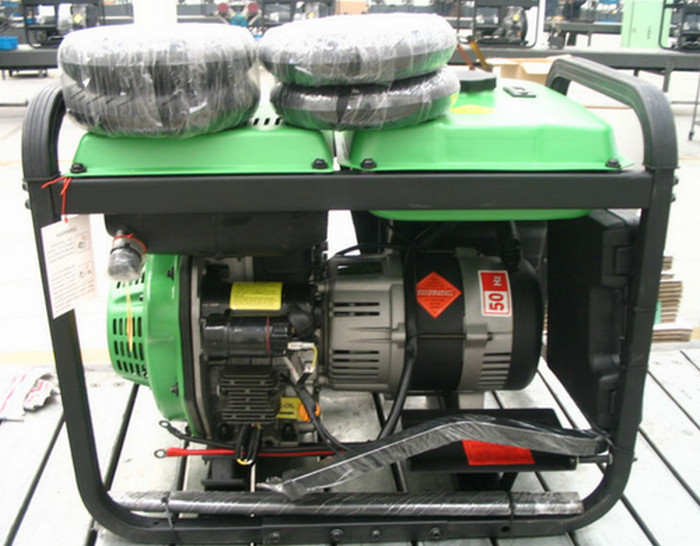

220V Single Phase 5kva Portable Diesel Generator with Wheels Electric start 4.5kva
| Rated frequency (Hz) | 50 60 |
| Rated output(kVA) | 4.5 5 |
| Max. ouput (kVA) | 5 5.5 |
| Rated voltage (V) | 230/115 240/120 |
| Rated current (A) | 19.6/39.2 20.8/41.7 |
| Rated speed (r/min ) | 3000 3600 |
| Phase number | Single |
| Excitation mode | Self-excitation and constant voltage(AVR) |
| Power factor cosφ | 1 |
| Insulation grade | F |
| Pole number | 2 |
| Engine model | 186FAE |
| Engine type | single-cylinder,4-stroke,vertical,diesel engine |
| Bore×stroke (mm) | 86×72 |
| Displacement (L) | 0.418 |
| Compression ratio | 19:1 |
| Rated power [kW/(r/min)] | 5.7/3000 6.3/3600 |
| Fuel type | 0#summer) -10#winter -35#(chill cold) diesel |
| Lube oil brand | SAE10W30 (above CC grade ) |
| Fuel consumptiong/kw.h | 275.1 281.5 |
| Fuel tank capacity (L) | 16 |
| Continuous running timehr | 9.5 |
| Overall dimension (mm) (L×W×H) | 915×547×742 |
| Dry weight (kg) | 170 |
| Starter system | electric starter |
| Noise leveldBA/7mat the rated load | 72 |
| Structure type | Silent |
3/5/6kw available,silent generator, single or three phase
having timer, remote control , ATS, battery, wheel, handle, digital control panel, preheater etc as options.
Testing Items of Power Friend Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.
Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
If have any questions, please contact us. Your inquiry would be appreciated.
