300A portable diesel generator welder 2 cylinder air cooled engine

Brand Name : GPRO

Model Number : B1200EW

Certification : ISO9001/ISO14001/CE

Place of Origin : WUXI CITY CHINA

MOQ : 1

Price : 1 SET

Supply Ability : 1000 sets / Month

Delivery Time : 20 days

Packaging Details : Carton box

Power(Prime/Standby) : 3KVA/3KW

Frequency : 50/60HZ

Current : 300A

Voltage : 220/230/240v

Engine : 2V86

Alternator : 100% copper

Controller : LCD screen

Sound Level/db : Sound Level/db 70dB

Warranty : 1 year or 1000 hours

Contact Now

300A portable diesel generator welder 2 cylinder air cooled engine





Specifications:



Model

1200EW

Frequency

Hz

50          60

Rated power

KVA(KW)

3            3

Voltage

V

230         240

Electricity Amp

A

8              9.6

Phase/Factor



3/0.8

Speed



3000            3600

Welding dc current adjusting range

A

0-300

direct current welding voltage

V

25-70V

Welding load factor



60%

Welding rectifier way



· IGBT, 3 phase rectifier bridge

Pole



2

Controler model



Normal/Auto

Output type

Electric output



3 Phase socket



Welding output



 binding post

exciting type



AVR Self-excitation voltage regulator

insulation grade



H

Dimension:L*W*H

mm

850x780x820

Net weight

kg

175

Type



OPEN TYPE

Engine model



R2V840-V2

Engine type



2 cylinder,V type,4 stroke,Tur

Cylinder NO.-Bore X stroke

mm

2--86x72

Displacement

ml

840

Rated power

KW

11.76              12

Compression ratio



19:01

Rated speed

r/min

3000         3600

Sparking model



· pressure combustion

Cooling type



Air cooling

Lubricating system



Pressure and spatter composite

Start-up type



Electric start

Fuel type



Fuel 0#,-10#,-35#

Lubricating oil type



L-ECD   10W/30  15W/40

Cooling water capacity

L

   -

Lubricating oil capacity

L

2.7

Starter capacity

V-KW

12V-1.4KW

Charging generator capacity

V-A

14V-15A

Battery capacity

V-AH

12V-36AH

Fuel consumption rate

g/kw.h

≤298

Fuel tank capacity

L

25

Generator running hours

h

8





Description:



1. 300A welder generator diesel power

2. Generator power 3KW/3KW

3. Dimension 1120x750x915mm

4. Net Weight 260KGS

5. Quantity for 20 foot container 26 sets





Applications:



1. Factory , mining , rail

2. Outside working where need welder



Competitive Advantage:



1. Use 100% copper alternator

2. 24 hours/7 days after sale service

3. Short delivery time

4. Stable quality warranty

5. Good air input and output design

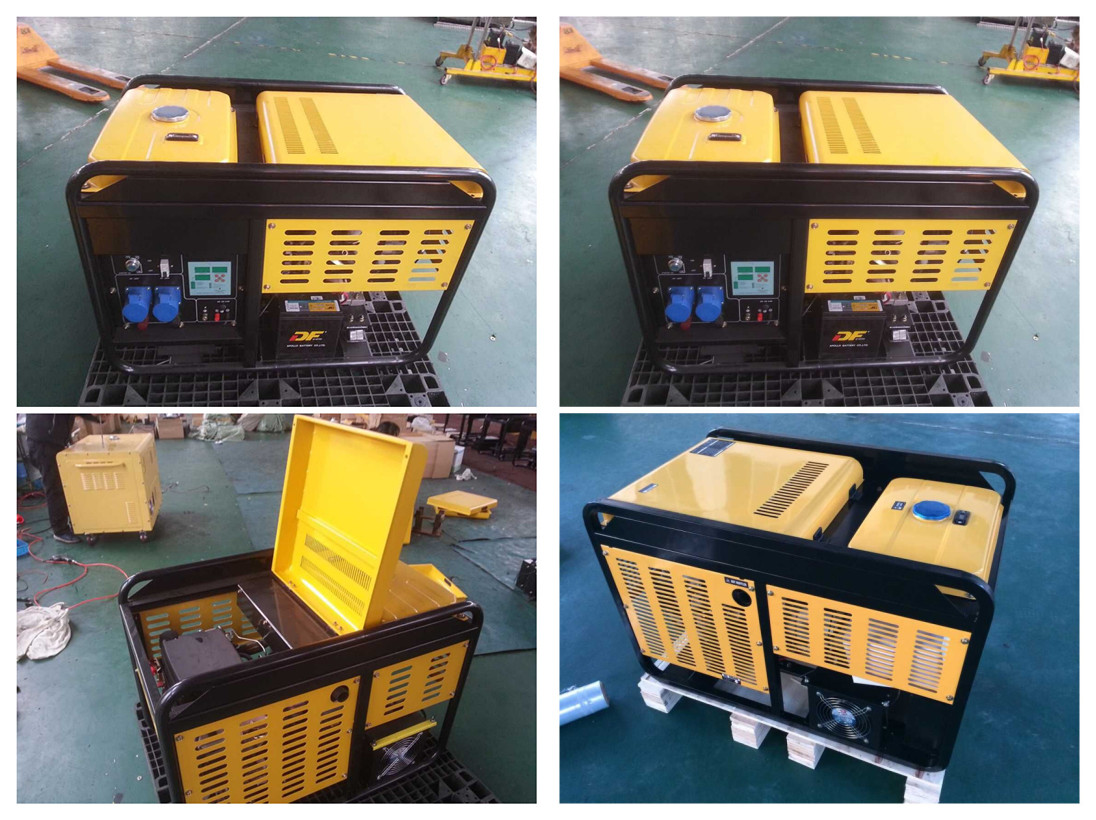

Welder generator 300A photos:



300A portable diesel generator welder 2 cylinder air cooled engine
